Name: 1000M Ethernet Transformer 1500V 24PIN network fillter meet IEEE8023
Brand: DGKYD
Price: 1 USD

Brand Name : DGKYD

Model Number : KMS-5004NL

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Delivery Time : 10 days

Packaging Details : Tray in Carton

Supply Ability : 100K pcs/day

Contact Now

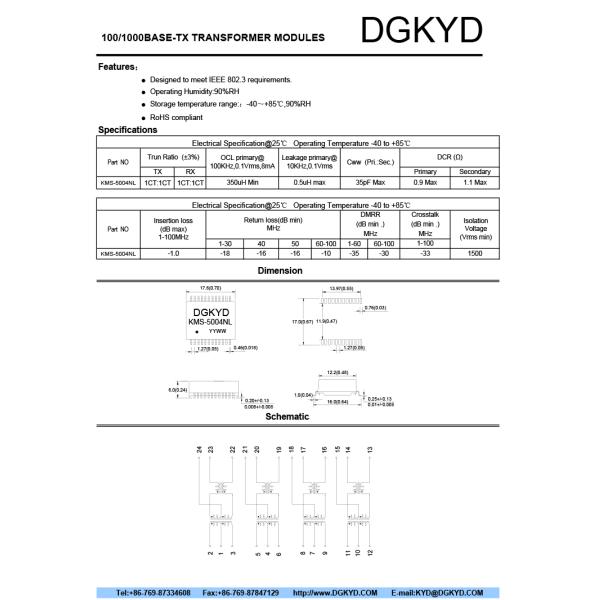

1000M Ethernet Transformer , 1500V 24PIN network fillter meet IEEE802.3

Features:

·Designed to meet IEEE802.3 requirements

·Operating Humidity:90%RH

·Storage temperature range:-40~+80℃,90%RH

·RoHS compliant

Part No.	T/R:T/R	Isolation Voltage	Contact Terminal
DGKYDKGP2421SR	1:1	1500V	SMD 24pin

1000M Ethernet Transformer , 1500V 24PIN network fillter meet IEEE802.3
